FHD Zoom Coupler
LN-F14-35

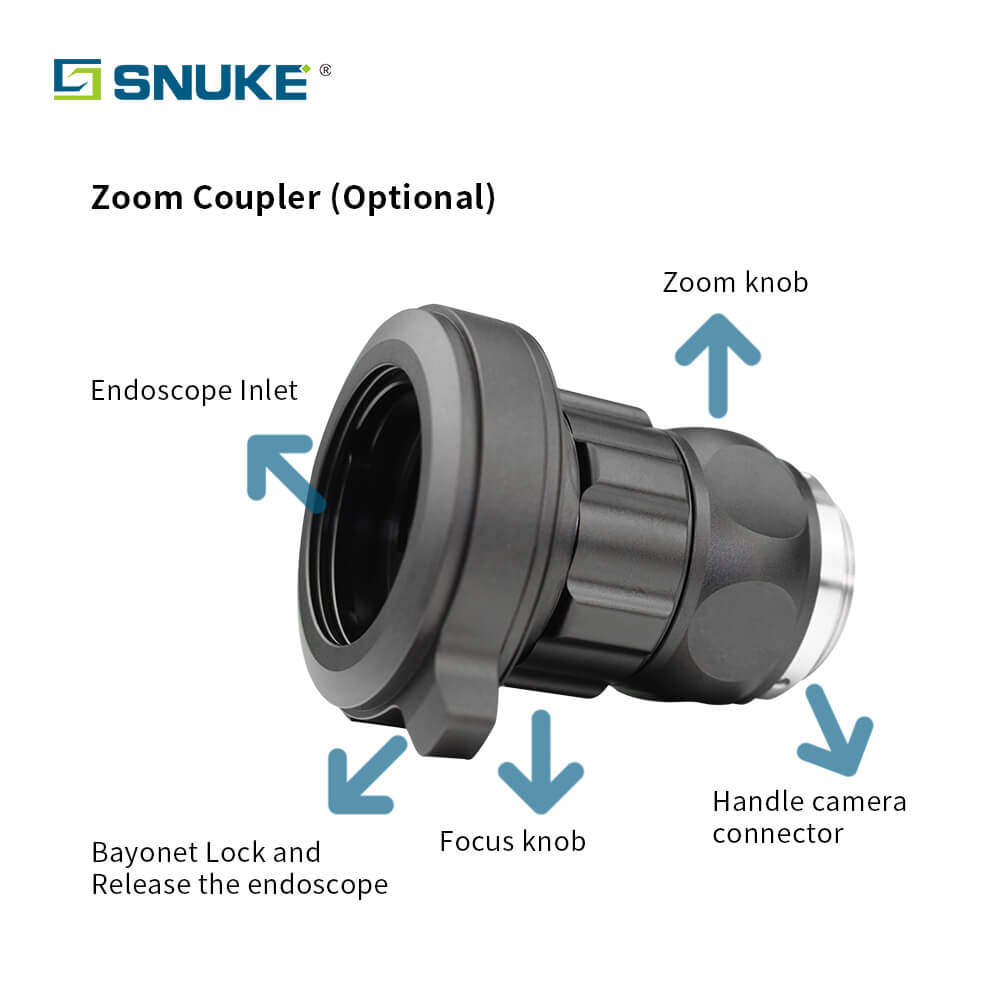

This video camera adapter/coupler will clip onto any 15-25mm, 18-35mm borescope eyepiece, and connect with any C-mount video camera unit aligning the CCD/CMOS video camera chip and the image bundle of the endoscope. This displays the live video image from the inspection area on your TV monitor, and allows you to focus on the inspection area through the endoscope.
Quantity:
FHD Zoom Coupler
Step 1: Line up the C-mount connection on the coupler
with camera head’s C-mount threads. Hold the camera
with one hand and rotate the coupler clockwise until it
cannot be rotated further.
with camera head’s C-mount threads. Hold the camera
with one hand and rotate the coupler clockwise until it
cannot be rotated further.
Step 2: Once the coupler has been attached to the
camera, insert the eye coupler endoscope into the
grasping mechanism by pinching the touch points
towards each other. Once the scope is inserted, release
the touch points to secure the scope in place
camera, insert the eye coupler endoscope into the
grasping mechanism by pinching the touch points
towards each other. Once the scope is inserted, release
the touch points to secure the scope in place
Complete assembly
Recommended
Autoclave 4k zoom coupler Washing Cycle Parameters
| Phase | Recirculation Time (Minutes) | Temperature | Detergent |
| Pre-Wash | 2 Minutes | Cold water | N/A |
| Cleaning Wash | 6 Minutes | Follow detergent manufacturer's recommendation | Enzymatic detergent |
| Thermal Disinfection Rinse | 5 Minutes | 90°C (194°F) | N/A |
| Drying | Minimum 6 minutes or until visibly dry | Minimum 90°C (194°F) | N/A |
#FHD zoom coupler, #endoscope zoom coupler, #1080P C-Mount coupler
