Autoclave 4k focus coupler
LN-AFC
4K ultra high-definition resolution, excellent imaging. Strong waterproof performance, easy to clean and disinfect after surgery. Compatible with C-Mount cameras. Supports high temperature and high pressure disinfection and sterilization.
Quantity:
Autoclave 4K Focus Coupler

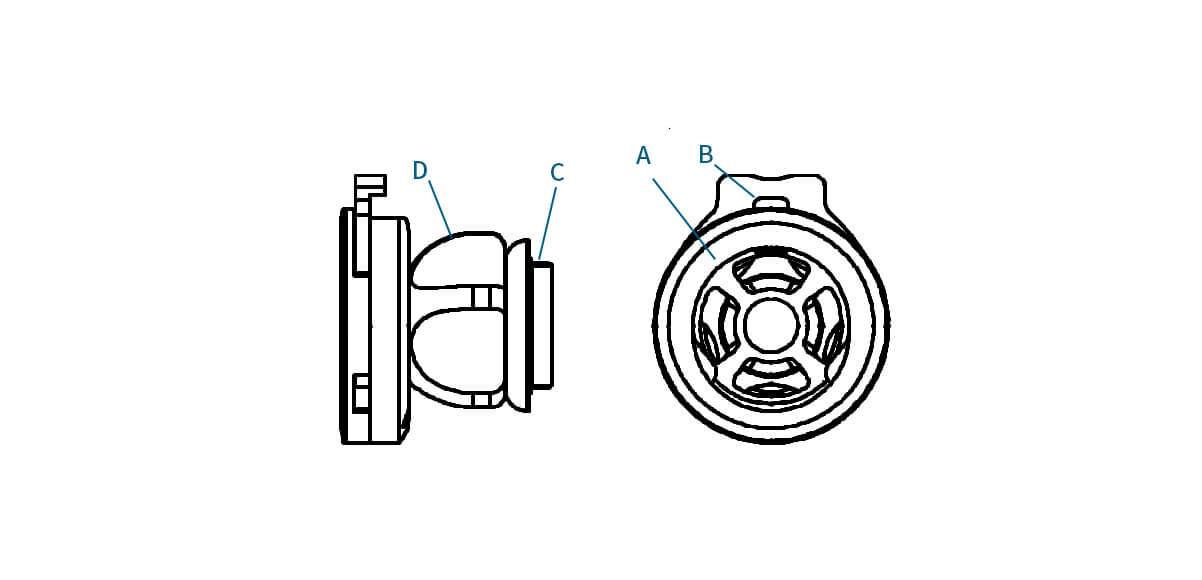

System Features
A. Grasping mechanism
B. Touch points
C. C-mount connection
D. Focus ring
A. Grasping mechanism
B. Touch points
C. C-mount connection
D. Focus ring
Step 1: Line up the C-mount connection on the coupler
with camera head’s C-mount threads. Hold the camera
with one hand and rotate the coupler clockwise until it
cannot be rotated further.
with camera head’s C-mount threads. Hold the camera
with one hand and rotate the coupler clockwise until it
cannot be rotated further.
Step 2: Once the coupler has been attached to the
camera, insert the eye coupler endoscope into the
grasping mechanism by pinching the touch points
towards each other. Once the scope is inserted, release
the touch points to secure the scope in place
camera, insert the eye coupler endoscope into the
grasping mechanism by pinching the touch points
towards each other. Once the scope is inserted, release
the touch points to secure the scope in place
Complete assembly
Recommended
Autoclave 4k zoom coupler Washing Cycle Parameters
| Phase | Recirculation Time (Minutes) | Temperature | Detergent |
| Pre-Wash | 2 Minutes | Cold water | N/A |
| Cleaning Wash | 6 Minutes | Follow detergent manufacturer's recommendation | Enzymatic detergent |
| Thermal Disinfection Rinse | 5 Minutes | 90°C (194°F) | N/A |
| Drying | Minimum 6 minutes or until visibly dry | Minimum 90°C (194°F) | N/A |
