FHD Medical-grade LCD Display Screen
FHD Endoscopic Monitor with Medical-Grade Imaging Precision
As a professional-level Medical monitor solution, our FHD endoscope monitor specially designed for optimizing the image chain of minimally invasive surgeries. It meets the strict requirements of real-time visualization for endoscopy diagnosis and surgery room operations.
✓ 1920×1080 Full HD resolution - Equipped with 10-bit IPS medical panel, precisely presenting the mucosal texture within the cavity and the micro-vascular of the cavity tissue (detail resolution ≤ 0.05mm)
✓ Three-proof optical enhancement layer - Integrated with anti-glare nano-etching + anti-reflective coating + anti-fingerprint coating, maintaining image contrast > 800:1 even under 2000 lux surgical lamp illumination
✓ Multi-specialty preset modes - One-click switch to the exclusive color curves adapted for laparoscopes/nasopharyngoscopes/urological scopes, ensuring consistency in visualizing pathological features
✓ Medical environment enhancement design - Certified by CE and with IP54 protection level, supporting 20 chlorine-containing disinfection cycles per day
As an innovator in the field of medical grade monitors, our FHD endoscopic monitor adopts the all-in-one LCD integration technology and achieves a leap in intraoperative image quality through triple optical optimization:

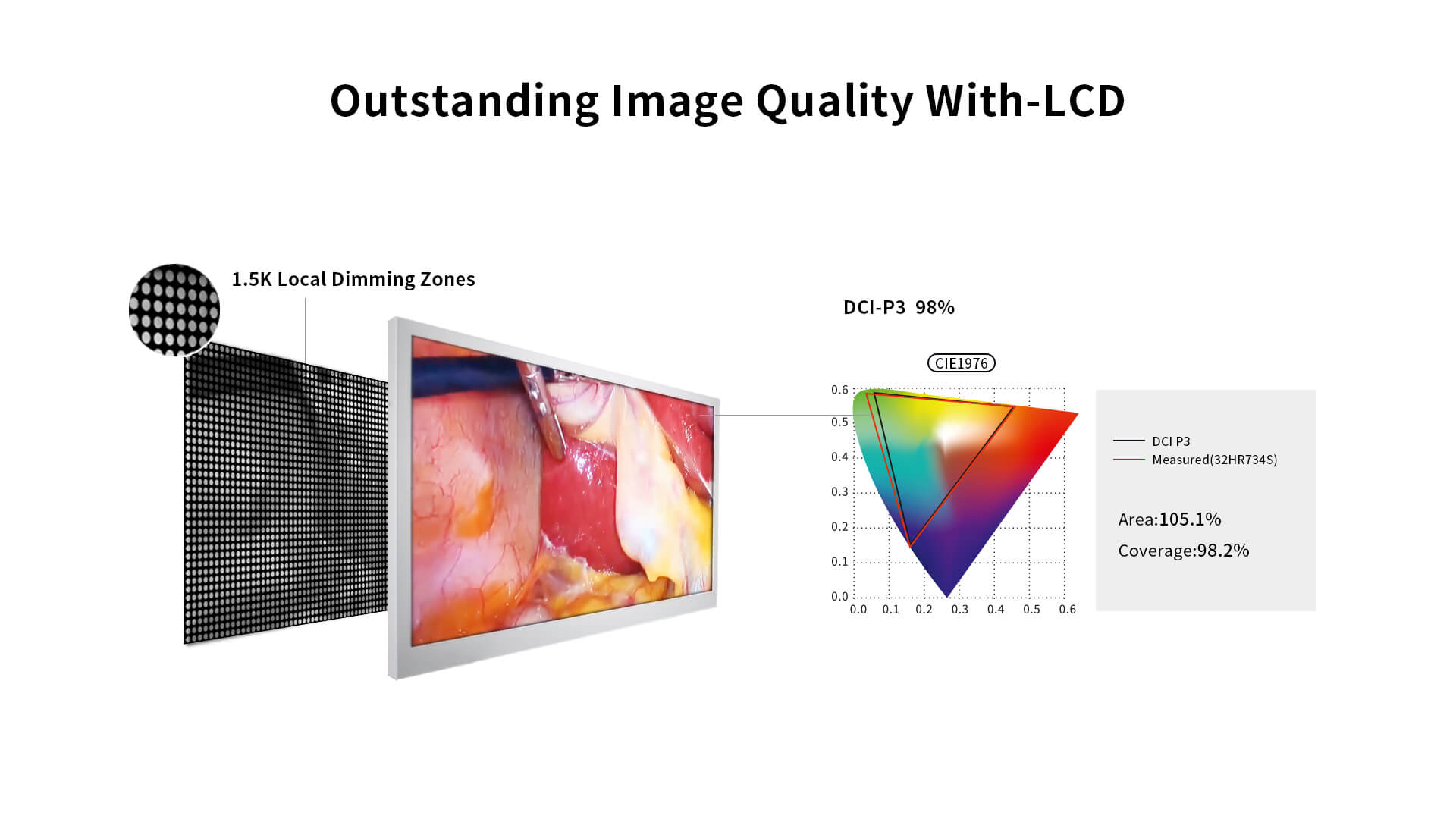

✓ The 4096-level local dimming enhances the resolution of dark-field details in laparoscopes by 220%.
✓ The native contrast ratio of 1000:1 combined with the medical-specific HDR algorithm enables the FHD endoscope monitor to achieve a recognition accuracy of ≤ 0.1mm when presenting microvessels of the mucosa inside the cavity.
✓ Covers 98% sRGB & 95% DCI-P3 color gamut, meeting the color standard of CE for medical monitors
✓ Embedded 3D-LUT chip ensures that the medical monitor maintains a color accuracy of Delta E < 1.5 under various ambient light conditions
✓Anti-glare nano-etched glass keeps the surface reflectivity below 0.5%
✓Antibacterial coating + IP54 protection supports the high-frequency disinfection process in the operating room
✓ GSDF preset mode can be switched with one click to adapt to the needs of specialties such as laparoscopy, otolaryngoscopy, and uroscopy

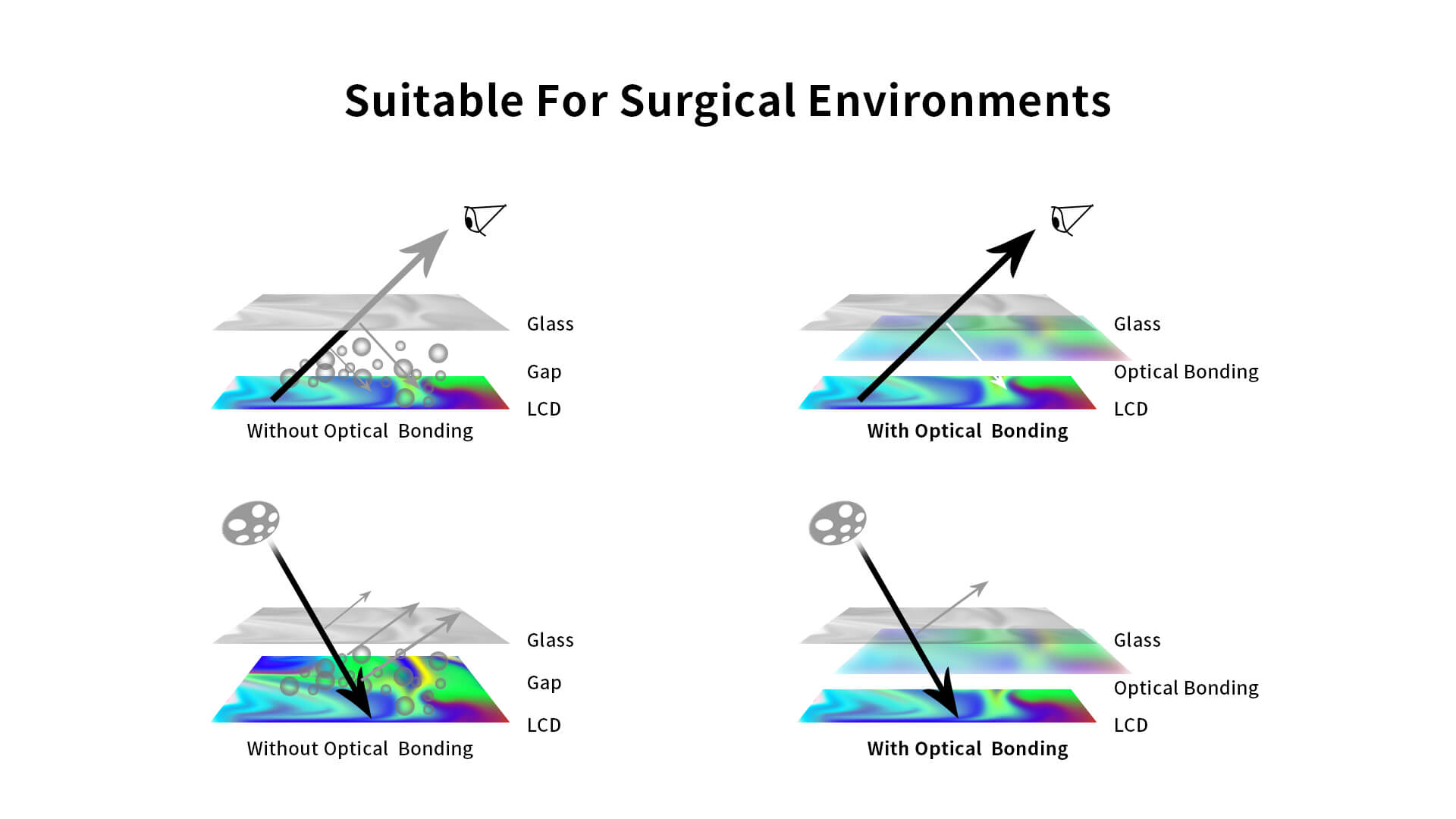

OptiFusion Light Welding Technology for Medical Grade Monitors

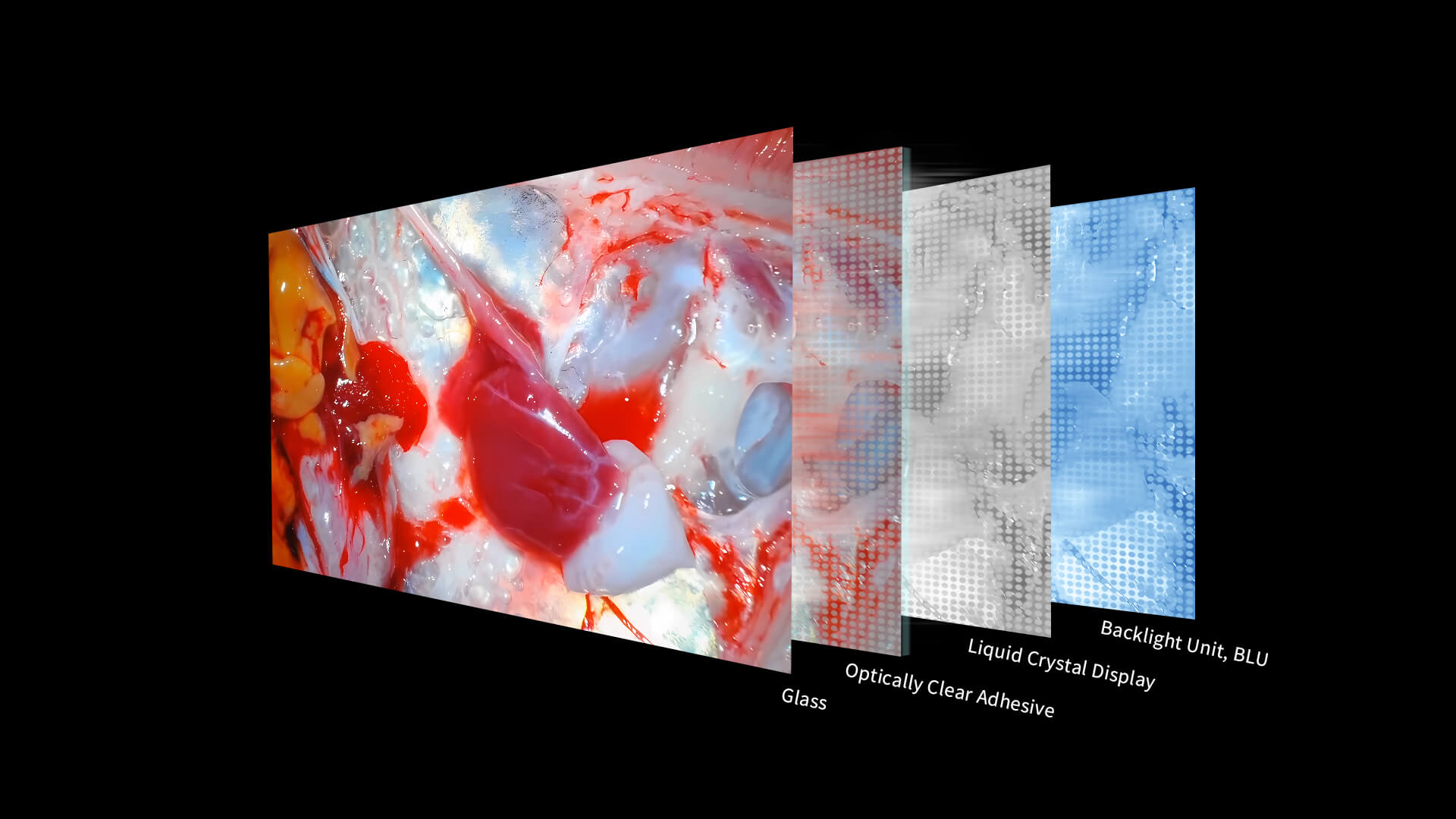

FHD endoscopic monitor revolutionizes surgical visualization with seamless backlight-to-glass integration, engineered to meet the demanding requirements of operating room displaysandminimally invasive surgery systems. By eliminating air gaps through nanoscale optical bonding, this medical grade monitorachieves:
✓<2% Surface Reflectance — The patented anti-reflective multilayer (AR/AG/AF triple-layer composite coating) maintains the color fidelity of the endoscope image even under 2000 lux surgical lamp illumination.
✓ Zero Dust Ingress Design — The fully sealed structure of the optical welding ensures IP5X medical protection certification, suitable for endoscope cleaning and disinfection environments.
✓800:1 Enhanced Contrast — The intelligent zone-based brightness compensation technology optimizes the vascular texture recognition of FHD endoscope monitors in low light conditions.
Advanced Material Technology
Military-Grade Enclosure
Combines CE-certified antimicrobial plastics and 316L medical stainless steel, engineered to withstand:
500+ sodium hypochlorite disinfection cycles
Zero permeability against corrosive endoscope cleaners (hydrogen peroxide/o-phthalaldehyde)
IP65-rated protection against liquid ingress and dust
Biomedical Optical Components
AG+AR dual-coated nano-etched glass ensures FHD endoscopic monitor visibility with ≤0.8% reflectivity (ASTM D1003) and <1.2 Delta E color shift at 85° viewing angles.
Silent Thermal Management
Fanless vapor chamber cooling maintains medical grade monitor operation at 40°C ambient temperature (0dB noise for neurosurgical precision).
6063 aviation-grade aluminum heatsinks deliver >200W/m·K thermal conductivity with 100,000-hour MTBF reliability.
| Image sensor | 1/1.8CMOS |
| image resolution | 1080P（1920x1080 |
| output interface | HDMI/DVI/SDI/CVBS |
| Touch screen | 7 inches (customizable UI) |
| Luminous flux | 800-3000lm |
| color temperature | 3000K-7000K |
| Video recording | USB |
| Endoscopic mode | ENT/fiberscope/arthroscope/custom, etc |
| power supply | ~110V-240V/50Hz |
| brightness | ODS adjustable |
| Dimensions | L380xW316xH120mm |
