Endoscopic 4K Camera Two-In-One Image Equipment

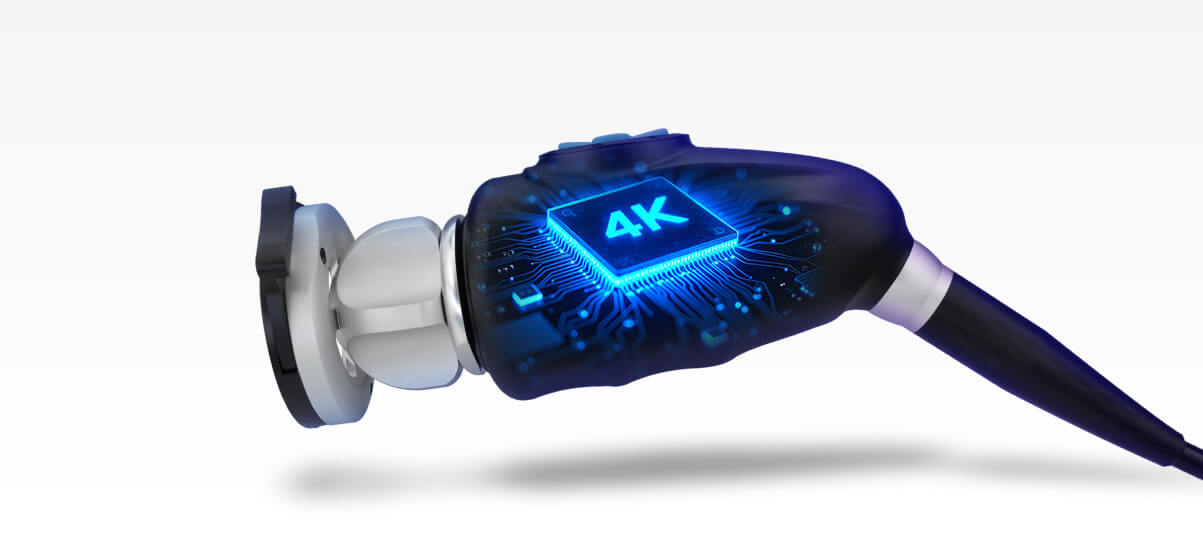

Designed to fulfill the clinical requirements of minimally invasive surgeries, SNUKE's LN-C700MU 4K UHD Endoscope Camera System with the advanced 1/1.8 inch SONY CMOS,4K camera head, and LED cold light source integrated, 7 inch touch screen.The important information is available at a glance. The main functions are available with only one touch of the panel.

- 4K UHD resolution
- Universal c-mount threading
- 4 function programmable buttons

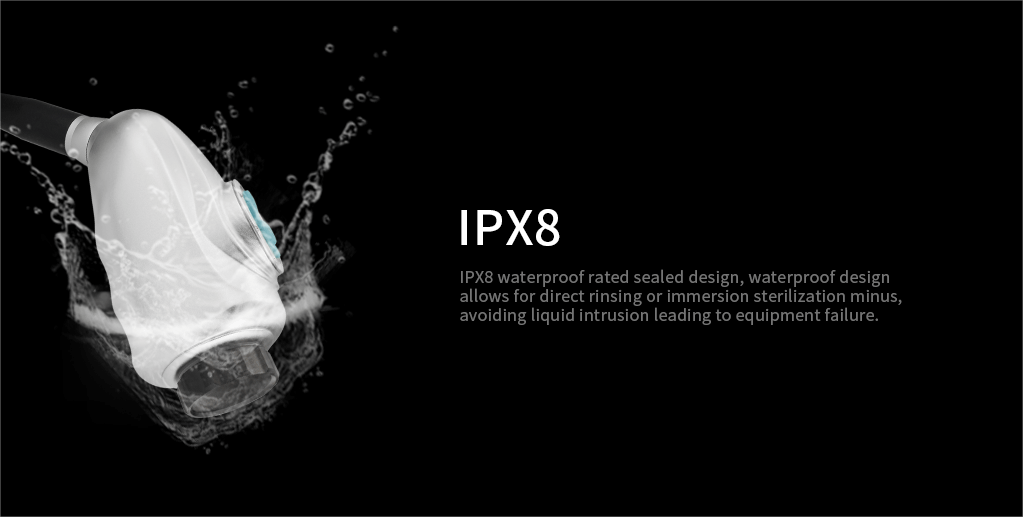

- soakable in disinfectant solution (IPX7)
- Multilingual menu and 7 inch touch screen

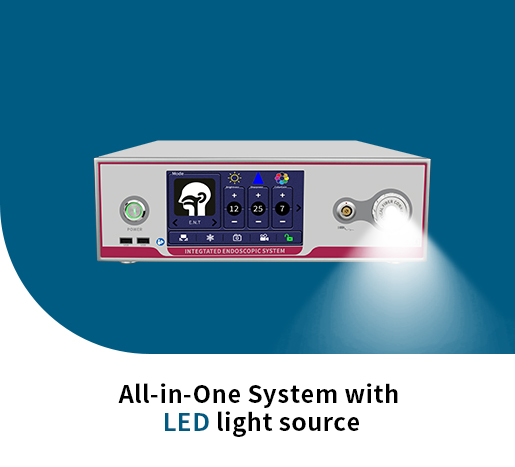

- Integrated LED light source
- 6 USER Presets for surgical application
- Image enhancement of colour and structure
- USB recording and play back

Endoscope Mode:
ENT
Laparoscope
Cystoscope
Hysteroscope
Arthroscope
Foraminoscope
Fiberscope
. . .

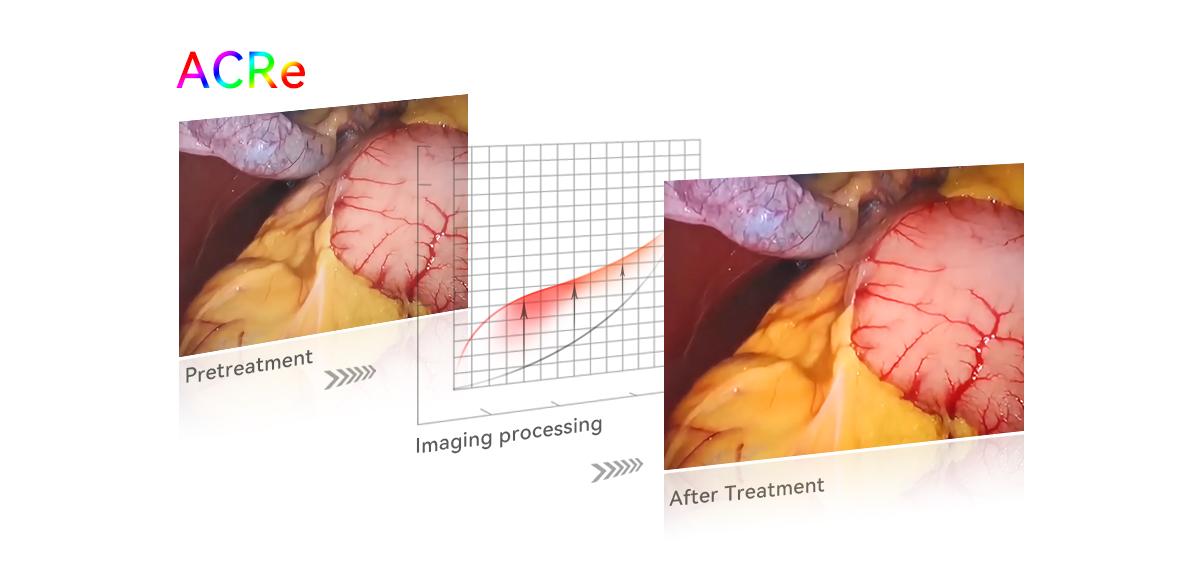

Through imaging processing, the raw visual data turns into actionable insights, directly contributing to effective diagnosis, treatment, and documentation in minimally invasive medicine.

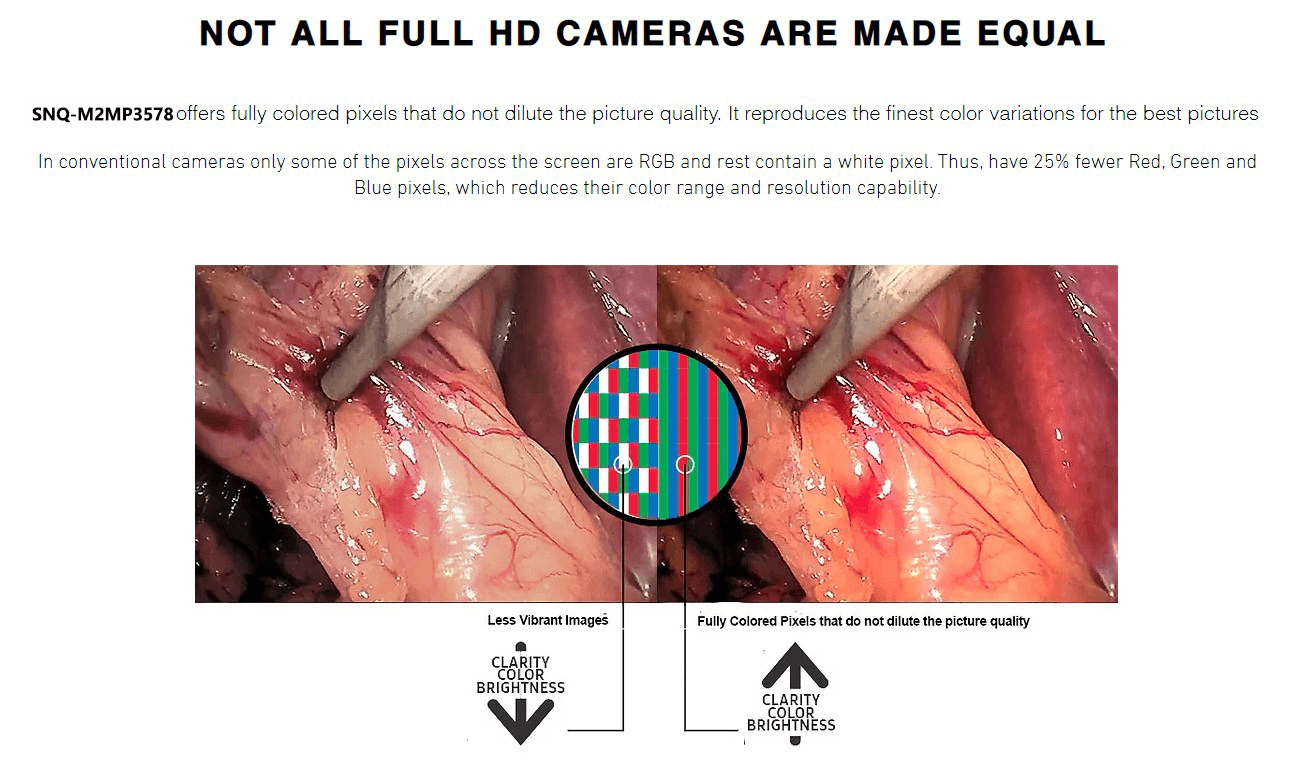

Our FHD medical endoscopy camera is equipped with self-developed image detail enhancement and edge enhancement, and advanced real-time image processing algorithm can significantly improve the clarity and contrast of endoscopy images. Whether it is the mucosal texture, tiny blood vessels, or the lesion edge, it can present the highest Full HD resolution of the highest detail, while combining the highest HDR (high Dynamic range) technology, effectively optimize the level performance of the light and dark areas, ensuring that the true and distortion-free surgical field of view can be captured in complex lighting environments.
As the first Two in one medical endoscope camera, the system integrates the technology of intelligent noise reduction andlow delay transmission, and supports full HD video recording and real-time broadcast under the 1080P medical imaging equipment standard. Meet the dual needs of intraoperative navigation and postoperative disk. In addition, the system is compatible with the AI-assisted lesion identification function, which helps doctors quickly locate suspected lesions and improve diagnostic efficiency.
In combination with the industry's hot technology trends, we also integrate the most multi-modal image fusion, and further expand the application boundaries of endoscopy in the alimentary tract, urology, ENT and other fields.






| Image sensor | 1/1.8CMOS |
| Image resolution | 4k (3840 x2160) |
| Output interface | HDMI/DVI/SDI/CVBS |
| Touch screen | 7 inches (customizable UI) |
| Luminous flux | 800-3000lm |
| color temperature | 3000K-7000K |
| Video recording | USB3.0, USB2.0 |
| Endoscopic mode | laparoscopy/cystoscopy/foraminoscope/custom, etc |
| Power supply | ~110V-240V/50Hz |
| Shortcut keys: | video, photo, freeze, white balance, digital zoom, etc |
| Dimensions | L380xW316xH120mm |
